High-Speed Hand Wrap Stretch Film Making Machine

Product features:

Fully automatic metering, automatic rewinding and automatic core replacement functions significantly improve production efficiency

Get a Quote
Share:
Max Speed
Output
Super Speed Stretch Film Making Machine
×
Product Description Main Technical Parameters Product Highlights
Product Description

It has been updated and uses a larger diameter cooling roller to enhance cooling efficiency. The screw has been nitrided to make it more stable and durable; the T-shaped die head is made of 2311 mold steel to ensure uniform film and longer service life.





Main Technical
Parameters
No. Item Specs
1. Model HLCPE-1500-90-65-65
2. Industrial Power Supply 3 phases industrial power supply
3. Total Power 150 KW
4. Main Raw Material LLDPE, & MLLDPE
5. Thickness of Film 10~50 microns (minimum thickness can be 8 microns)
6. Width of the Useful Film Maximum width: 1500 mm
7. Film Layer Structure ABC Three layers or ACBCA Five layers
8. Designed Linear Speed 200 M/Min
9. Extrusion Output 320 kgs/h
10. Dimensions (L×W×H) 12*6*3.8 M (for reference only)
11. Gross Weight 16T (for reference only)
Product Highlights
10-inch Touchscreen
2311 T-DIE
Brook Motor

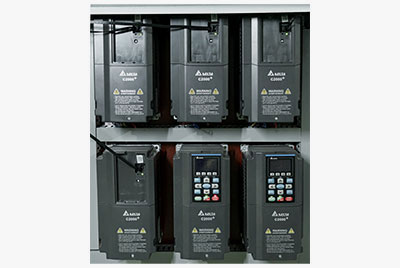

Delta Inventer
Neatly arrange the electrical wires
Omron Temperature Controller

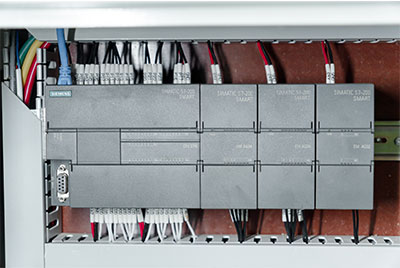

Siemens PLC

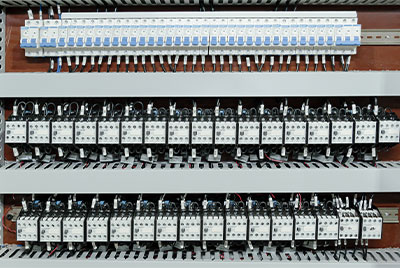

Siemens

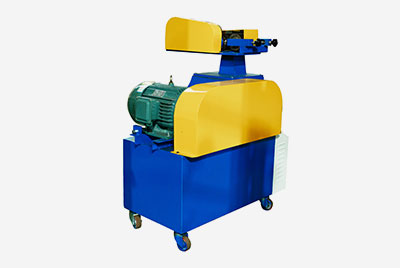

Trimming and Online Recycling
Related Products
Double Layer Stretch Film Machine
Industrial Casting Stretch Film Machine
Stretch Film Production Machine
Related News
Customer cases
August 15,2023
In the online recycling stage, the waste edge is lighter than the granular material, which will result in the uneven feeding of the screw.    Customers are the designated suppliers of Coca Cola and have high requirement for product quality. Therefore, they ask us to solve this problem.
The Complete Guide to Bubble Film Making Machines
June 24,2025
Bubble film, commonly known as bubble wrap, is an essential protective packaging material used across industries like e-commerce, electronics, food packaging, and logistics.
Need Durable, High-Speed Bubble Wrap? This 3-Layer Machine Does It All!
May 30,2025
Are you in the packaging industry and searching for a high-efficiency 3-layer air bubble film making machine? Whether you need protective packaging for fragile goods, electronics, or shipping materials, a reliable bubble film production line is essential.
We are here to support you!
Further information or a personal consultation? Our products and know-how are there to provide solutions.
GET IN TOUCH NOW
Captcha Code
×
Stretch Wrap Film Calculator
Typical values: 12-17μm (machine), 20-25μm (hand wrap)
Area Production
Per Minute: 0 m²
Per Hour: 0 m²
Per Day (8h): 0 m²
Per Day (24h): 0 m²
Weight Production
Per Hour: 0 kg (0 t)
Per Day (8h): 0 kg (0 t)
Per Day (24h): 0 kg (0 t)
Per Roll (3000m): 0 kg
Calculation Formulas:
Area (m²/min) = Width (mm) ÷ 1000 × Speed (m/min)
Weight (kg/h) = Area (m²/h) × Thickness (μm) × 0.001
Standard conversion: 1μm thickness = 0.001kg/m²
×
